1A-22193F-1

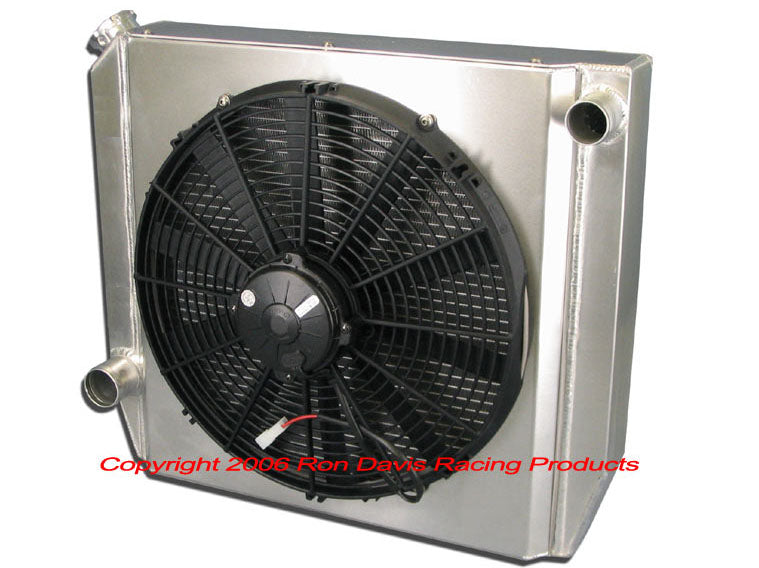

This Ron Davis off road racing radiator measures 22" wide by 19" tall by 3" thick (7.5" thick including the fan and shroud). It is an all-aluminum construction and built with 2 rows of 1" tubes. Outlets are located in the standard Ford configuration, inlet top right 1.5"  in diameter and outlet bottom left 1.75", in diameter. It comes with the essential steam port for the LS motors and a plug in case it's not used. It also comes with a16" Spal high performance fan that pulls 1918 CFM. Brushless fans are available, please call 1.800.842.5166 for price and availability.
