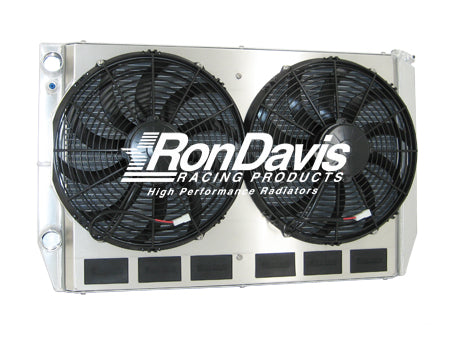

1A-3119F-05 31" x 19" x 3" Off Road Racing Radiator Left Side Double Pass LS Engine

This Ron Davis off road racing radiator is built with 2 rows on 1" tubes and measures 31" wide X 19" tall by 3" thick (7.5" including fans and shroud). It's a dual pass configuration with hose connections both on the left-hand side that are 1.5" in diameter and the essential steam port is included for the LS motors (optional plug supplied if steam port is not in use). It comes with two massive Spal 14" High Performance fans that pull 3728 CFM. Brushless fans are available, please call 1.800.842.5166 for price and availability.
